Hollyseal? Brown PVC Foam Tape

Hollyseal?PVC foam tape is made by 230±30kg/m3 density closed cell PVC foam with pressure-sensitive adhesive on one side designed to provide an economical solution to seal against light, air and moisture. It is ideal for applications such as appliance seals, wall panels, die-cut,gaskets, and window and door weatherstripping.
INQUIRY

Product introduction

This Hollyseal? PVC foam tape(250±30kg/m3) coated on both side with a high performance acrylic adhesive, and carried on a white siliconized paper liner. Good combination of flexibility and conformability with strength & wear resistance. Excellent weatherability and chemical resistance. It is a clean, waste free substitute for liquid sealants. An economical, general purpose foam tape. Used in applications requiring positive seals on irregular surfaces or when flexibility and conformability to seal tight radius curves are critical considerations.


We manufacture finished goods in main types of PVC foam, which are:
●Quick recovery foams – where the material immediately recovers after compression
●Slow recovery PVC foams – ideal for filling irregular surfaces

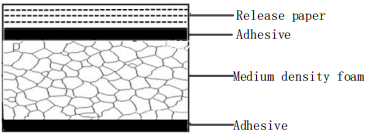

Product structural

Product feature

●Dimension stability

●Good abrasion resistance

●Excellent UV resistance and weather resistance

●Conform to curves and different shapes

●Thicknesses from 0.8 mm up to 16 mm

●Flame resistant product which meets FMVSS 302

●30% compression provides an excellent seal against light, dust and water

Product application

● Automotive parts
● Water tank sealing
● Door frame assemblies
● Roof sealing for parapets
● Ventilation ducting
● Appliance seals
● Export container seals
● Glazing systems

Technical information

Density	250±30 kg/m3
Shore 00 Hardness	55±7°
Tensile Strength	≥400 kPa
Force to Compress	≥25kPa
Elongation	≥110%
30% Compression set	≤7%
Flammability	UL94 HBF/HF-1/V-0 FMVSS 302
